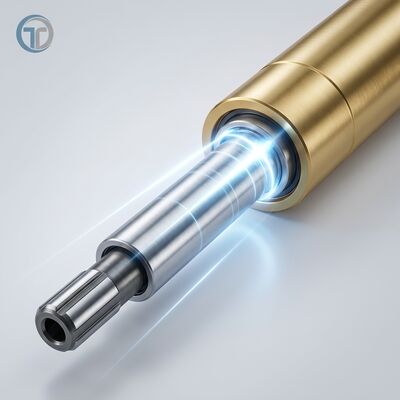

The Laser Engraved Ceramic Anilox Roller is a precision metering component built for flexographic printing and coating applications that demand consistent ink delivery. Every roller starts from a 45# steel base body, which is machined to strict concentricity tolerances and then coated with a dense ceramic layer. The trihelical cell shape is formed by a computer-controlled laser engraving process, producing uniform cell depth and volume across the entire face length. This combination of steel core rigidity and ceramic surface hardness makes the roller an ideal choice for printers who need repeatable color density over long production runs.

Compared with conventional chrome plated rollers, the ceramic anilox roller offers significantly better wear resistance and a longer service interval. The trihelical cell geometry improves ink release properties, reduces doctoring blade wear, and maintains a stable ink film thickness even at high press speeds. Print shops running water based inks, solvent based inks, or UV inks will find that this roller delivers sharp dot reproduction and smooth solid coverage without ghosting or streaking.

• Laser Engraved Ceramic Surface: Computer controlled laser engraving creates uniform trihelical cells with consistent depth and volume for repeatable ink metering.
• Precision Ink Transfer: The trihelical cell shape promotes clean release of ink onto the plate, minimizing piling and maintaining sharp print definition.

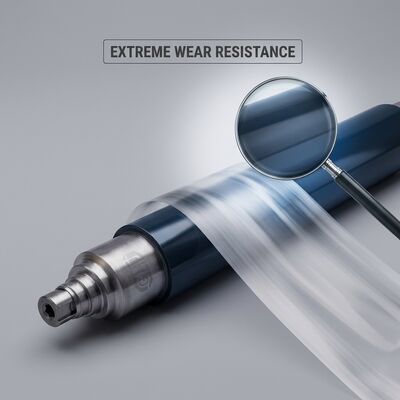

• High Wear Resistance: The dense ceramic coating withstands abrasive inks and doctor blade contact far longer than chrome finishes.
• Corrosion Protection: The inert ceramic layer resists attack from aggressive solvents, aggressive additives, and cleaning chemicals.
• Custom Dimensions: Diameter from 25 mm to 600 mm with customized face length, journal size, and keyway arrangement.

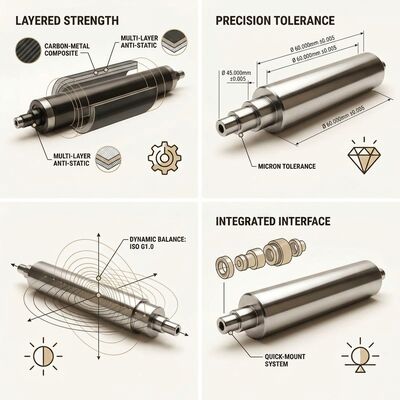

• Balanced Performance: Each roller is dynamically balanced to reduce vibration and ensure smooth operation at elevated press speeds.

The Laser Engraved Ceramic Anilox Roller is widely installed in flexographic printing presses, coating machines, and converting lines. It is suitable for printing on film, paper, foil, labels, and corrugated board where precise ink volume control is essential. The roller also performs well in varnish and adhesive coating stations, where even film thickness directly affects product quality. With the trihelical cell configuration, operators can achieve high solid ink density while keeping dot gain under control, making this roller a dependable upgrade for both narrow web and wide web applications.

Every roller is inspected for cell uniformity, surface finish, concentricity, and dynamic balance before shipment. Rollers are wrapped with anti-rust protection and shock absorbing material, then packed in an export standard wooden box to prevent damage during long distance sea or air freight. Our factory is ISO9001 certified and each roller is supplied with a quality inspection report. Please contact our sales team with your press model, required diameter, face length, and screen count to receive a quotation and production schedule.
